Dismantling the housing
(The housing is attached to the chassis with four screws)
- Set the main switch to the 0 position.
- Turn the robotic lawnmower over. Place the robotic lawnmower on a soft, clean surface to avoid damaging the housing.
- Unscrew the four screws (Torx 25). Replacing the rear rubber dampers
- Loosen the four screws (Torx 20) that secure the two rear rubber damper brackets to the housing.
Note: The brackets are not fitted symmetrically. Make a note of their position so that they can be correctly refitted later.
- Loosen both screws (Torx 25) that secure the rubber dampers in their brackets.
- Fit new rubber dampers in the brackets. Always replace both rubber dampers together.
- Fit the brackets in the housing.
Note: The brackets are not fitted symmetrically. Therefore, make sure that they are fitted correctly.

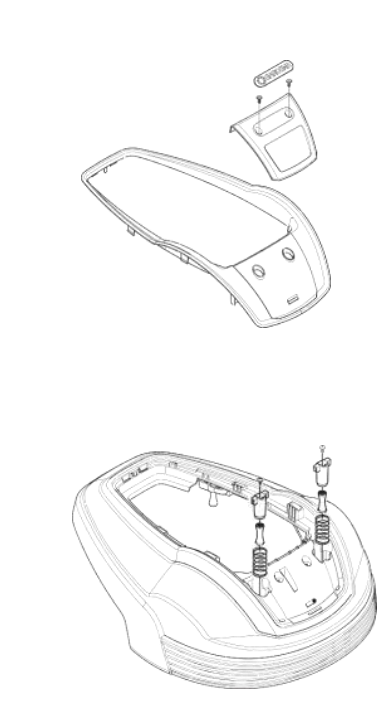

Changing the front rubber damper
NOTE! It is normal for the GARDENA shield to be damaged when removing the housing components and must therefore be replaced during assembly. If handled very carefully, the GARDENA shield can possibly be reused.
- Dismantle the housing. (see above)
- Use a knife to remove the self-adhesive GARDENA shield from the housing.
- Loosen the two screws (Torx 20) that secure the shield holder to the housing and remove the shield holder.
- Remove the silver-coated frame, which is attached to the housing with snap-on fasteners.
- Lift the two holders out of the housing.
- Loosen the two screws (Torx 25) with which the rubber dampers are attached to the mounts.
- Attach the new rubber dampers to the mounts and replace both dampers together.
- Fit the mounts in the housing.
- Attach the silver-coated frame.
- Fit the sign holder.
- Attach a new self-adhesive GARDENA shield.
- Fit the housing. (see above)
